Description
- The high quality Klein router bits satisfy the most accurate applications required by the marketplace today. In order to achieve the highest level of quality, our production department has continually invested in and equipped with the advanced technologies. Moreover we always pay detail attention to the choice of raw material, producing router bits for top market performance, precision and cutting life.

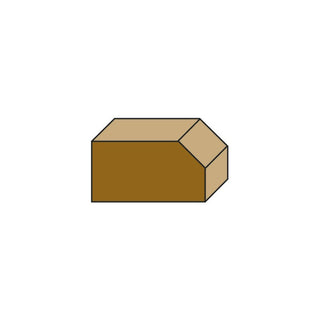

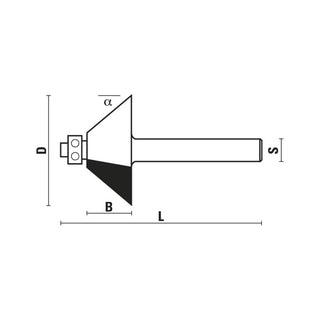

- You will be able to create a uniform chamfer on the edge of the workpiece in a simple way. The most common bit is with 45° degree but many other options are available. Chamfer size is adjusted easily by changing the height of the bit, using the ball bearing as a guide on the template.
| A122.010.R | 6 | 17.5 | 10 | 49 | 3 | 10° | ||
| A122.015.R | 6 | 19 | 10 | 49 | 3 | 15° | ||
| A122.025.R | 6 | 22 | 10 | 49 | 3 | 25° | ||
| A122.045.R | 6 | 30 | 10 | 49 | 3 | 45° | ||
| A122.130.R | 6 | 13 | 12.7 | 46 | 2 | 15° | ||
| A122.190.R | 6 | 19 | 12.7 | 46 | 2 | 25° | ||
| A122.317.R | 6 | 32 | 13 | 51 | 2 | 45° | ||
| B122.010.R | 6.4(1/4”) | 17.5 | 10 | 49 | 3 | 10° | ||
| B122.015.R | 6.4(1/4”) | 19 | 10 | 49 | 3 | 15° | ||
| B122.025.R | 6.4(1/4”) | 22 | 10 | 49 | 3 | 25° | ||
| B122.045.R | 6.4(1/4”) | 30 | 10 | 49 | 3 | 45° | ||
| B122.130.R | 6.4(1/4”) | 13 | 12.7 | 46 | 2 | 15° | ||
| B122.190.R | 6.4(1/4”) | 19 | 12.7 | 46 | 2 | 25° | ||
| B122.317.R | 6.4(1/4”) | 32 | 13 | 51 | 2 | 45° | ||
| C122.010.R | 8 | 17.5 | 10 | 49 | 3 | 10° | ||
| C122.015.R | 8 | 19 | 10 | 49 | 3 | 15° | ||
| C122.025.R | 8 | 22 | 10 | 49 | 3 | 25° | ||
| C122.045.R | 8 | 30 | 10 | 49 | 3 | 45° | ||
| C122.317.R | 8 | 31.7 | 13 | 51 | 2 | 45° |
