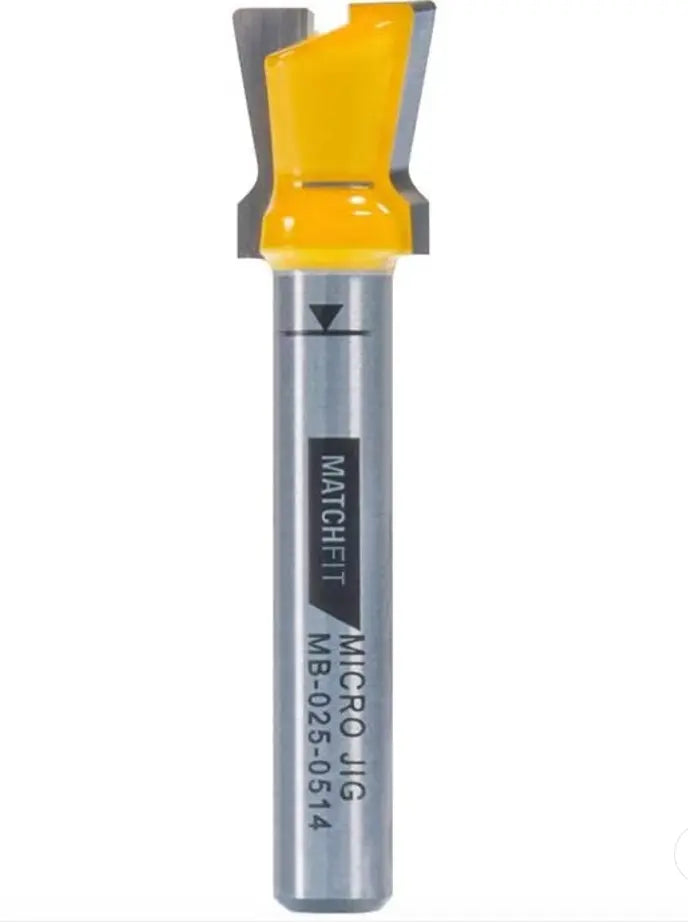

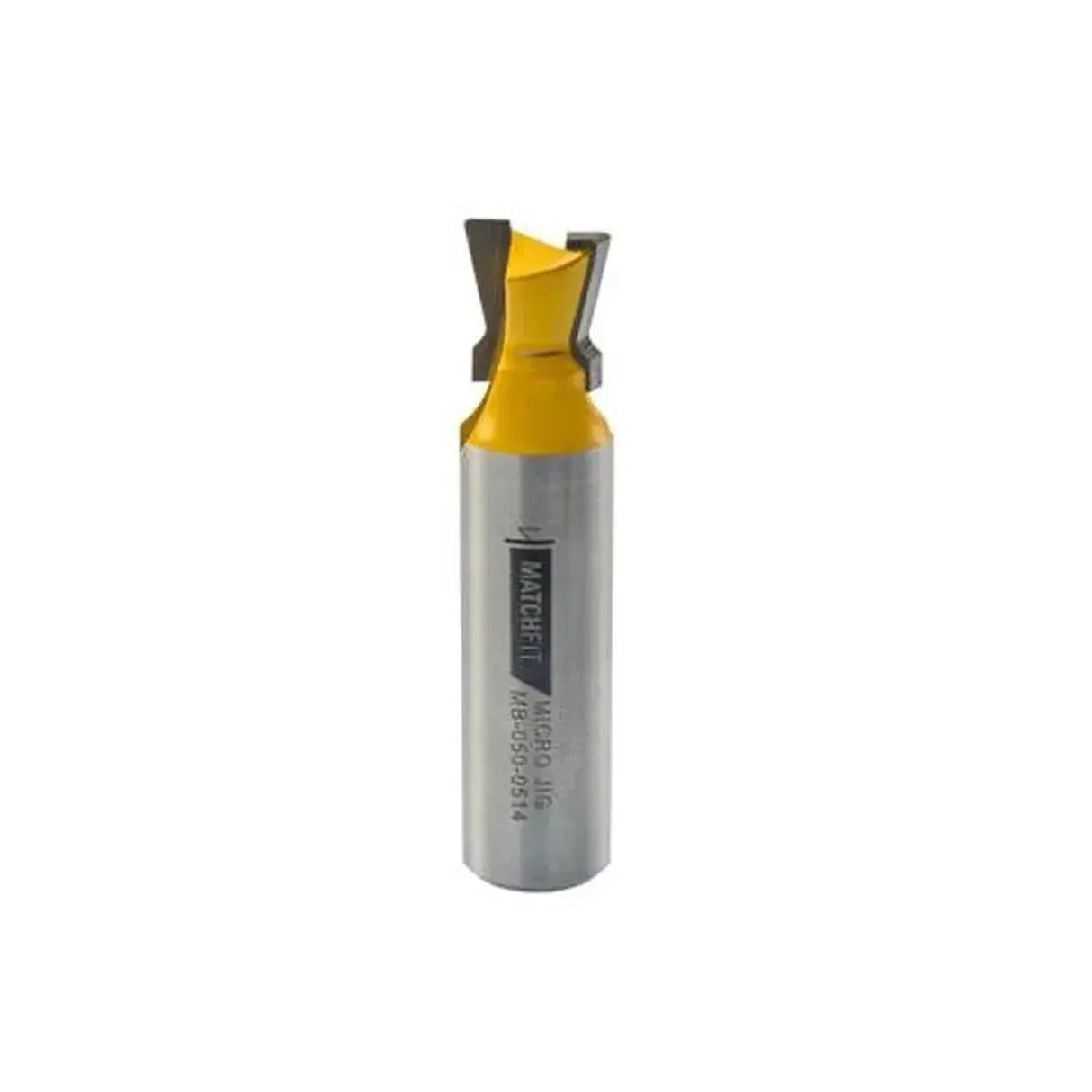

Matchfit System Router Bit - Dovetail Profile

The MATCHFIT Dovetail Router Bit is specifically designed for the MATCHFIT Dovetail Clamp system, enabling you to create custom dovetail tracks anywhere in your workshop. Its unique ½" 14-degree profile features built-in roundovers that produce clean dovetail grooves in a single pass, reducing the need for additional sanding. The bit's design includes an 8-degree down-shear carbide that evacuates chips and dust, minimizing friction and heat for cleaner cuts.

Additionally, the 1/32" roundover at the bottom of the groove strengthens the corners, especially important when routing grooves in plywood to minimize the possibility of plies separating. The 1/16" roundover at the top of the groove prevents tear-out and fuzz, significantly reducing the amount of sanding needed. The router collet safety line indicates the proper insertion depth into the router collet, ensuring optimal performance and safety.

Choose the shank size dependant on the router you want to use for making the grooves.
