Euro Hinge Drilling Jig

Drill and install European door hinges with ease and precision using the Milescraft Euro Hinge Jig. Designed for both enthusiasts and professional cabinetmakers, this versatile hardware installation jig ensures accurate and straightforward installation of European-style concealed hinges on frameless or face frame cabinets.

Features and Benefits:

• Edge Alignment Knobs: Automatically positions the cup hole at the correct distance from the door edge.
• Edge Locator Pins: Quickly set the jig at the perfect vertical position.
• Metal Drill Guide: Ensures straight, accurate hinge cup holes with a locking bushing.
• Hinge Screw Guide: Built-in bushings for pre-drilling pilot holes in common hinge screw locations, ensuring straight hinges and proper door closure.
• Built-In Depth Settings: Easily set your hinge cup hole depth using the built-in depth stop.
• Hinge Marking Guide: Detachable guide transfers and marks hinge center lines and locations on the cabinet frame or wall.

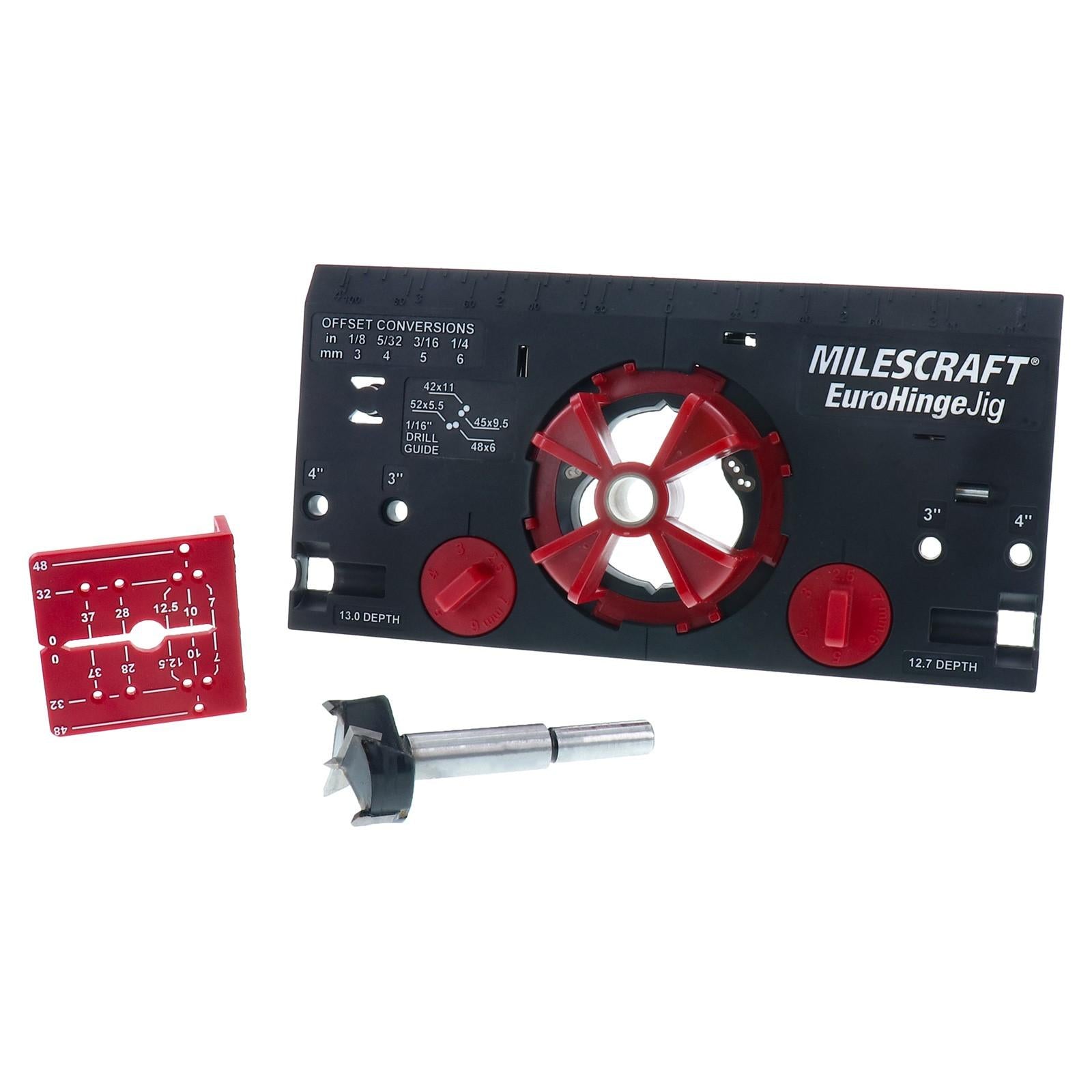

What’s Included:

• Euro Hinge Jig with locator pins and drill bushing guide
• Marking guide
• 35mm Euro hinge boring bit
• 1.6mm pilot bit
• 3.0mm Allen wrench
• Easy-to-follow instructions

Whether you're working on framed or frameless cabinets, the Milescraft Euro Hinge Jig takes the guesswork out of hinge installation, delivering professional results every time.
