Description
- The high quality Klein® router bits satisfy the most accurate applications required by the marketplace today. In order to achieve the highest level of quality, our production department has continually invested in and equipped with the advanced technologies. Moreover we always pay detail attention to the choice of raw material, producing router bits for top market performance, precision and cutting life.

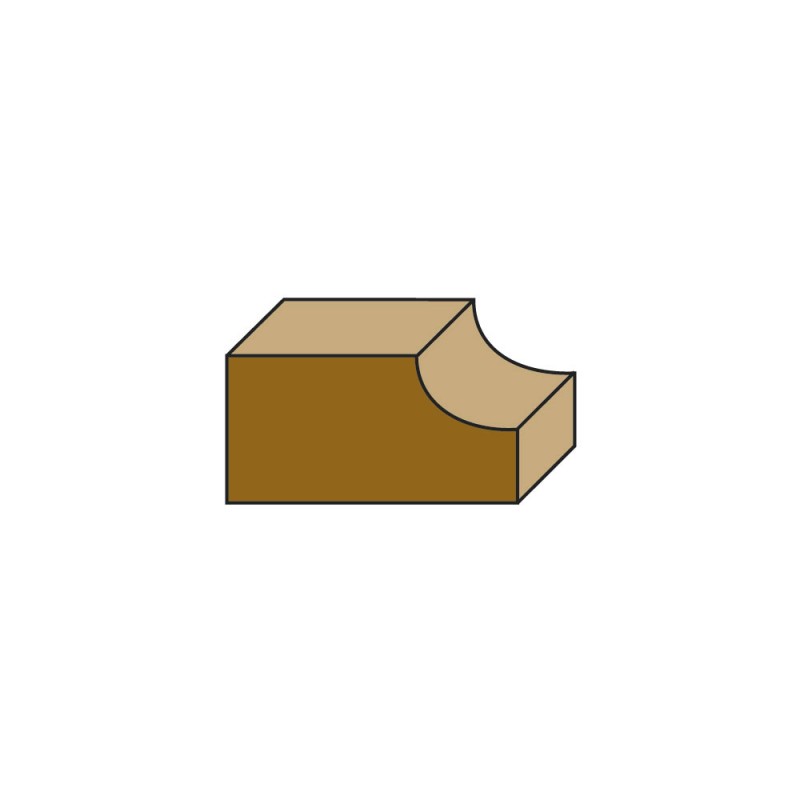

- Klein® cove bits are thought for working edges of casework, doors and drawers, posts and columns. The cove bit creates one-half of the rule joint used on drop-leaf tables, the other part has to be made with a concave radius (same diameter) by corner-round bit for making perfect quarter-round/shell joints. When using large diameter cutter, be sure to make a preliminary cut with a smaller diameter to produce smooth and perfect finishing and prolong its life.
| A125.160.R | 6 | 16 | 13 | 51 | 3.2 | ||
| A125.190.R | 6 | 19 | 14 | 51 | 4.8 | ||
| A125.222.R | 6 | 22.2 | 14 | 51 | 6.4 | ||
| A125.254.R | 6 | 25.4 | 14 | 51 | 8 | ||
| A125.286.R | 6 | 28.6 | 14 | 51 | 9.5 | ||
| A125.350.R | 6 | 35 | 16 | 54 | 12.7 | ||
| B125.160.R | 6.4(1/4”) | 16 | 13 | 51 | 3.2 | ||
| B125.190.R | 6.4(1/4”) | 19 | 14 | 51 | 4.8 | ||
| B125.222.R | 6.4(1/4”) | 22.2 | 14 | 51 | 6.4 | ||
| B125.254.R | 6.4(1/4”) | 25.4 | 14 | 51 | 8 | ||
| B125.286.R | 6.4(1/4”) | 28.6 | 14 | 51 | 9.5 | ||
| B125.350.R | 6.4(1/4”) | 35 | 16 | 54 | 12.7 | ||
| C125.160.R | 8 | 16 | 13 | 51 | 3.2 | ||
| C125.190.R | 8 | 19 | 14 | 51 | 4.8 | ||
| C125.222.R | 8 | 22.2 | 14 | 51 | 6.4 | ||
| C125.254.R | 8 | 25.4 | 14 | 51 | 8 | ||
| C125.286.R | 8 | 28.6 | 14 | 51 | 9.5 | ||
| C125.350.R | 8 | 35 | 16 | 54 | 12.7 |
